ASTMB161 ASTMB163 Nickel 200 Alloy (UNS N02200)/2.4066 Seamless Nickel Alloy Steel Pipe

HomeProducts & servicesNickel Alloy---Hastelloy/ Monel/ Inconel/Incoloy Steel tube and Pipe ASTMB161 ASTMB163 Nickel 200 Alloy (UNS N02200)/2.4066 Seamless Nickel Alloy Steel Pipe
ASTMB161 ASTMB163 Nickel 200 Alloy (UNS N02200)/2.4066 Seamless Nickel Alloy Steel Pipe

ASTMB161 ASTMB163 Nickel 200 Alloy (UNS N02200)/2.4066 Seamless Nickel Alloy Steel Pipe

① STANDARD: ASTM B161/ ASTM B163/ASME SB161/ASME AB163

② OD RANGE : 6-257 MM

③ THICKNESS RANGE: 1-35 MM

Nickel 200 Alloy (UNS N02200)/2.4066 Chemical Composition

Grade

Ni

Cu

Fe

Mn

C

Si

S

UNS N02200
≥99.00
≤0.25
≤0.40
≤0.35
≤0.015
≤0.35
≤0.01

UNS N02201

≥99.00

≤0.25

≤0.40

≤0.35

≤0.02

≤0.35

≤0.01

Nickel 200 Alloy (UNS N02200)/2.4066 Mechanical Properties

Grade

Condition

Tensile Strength

Yield Strength

Elongation(%)

N02201

Annealed

≥50(345)ksi(MPa)

≥12(83)ksi(MPa)

≥40

N02201

Stress-relieved

≥60(414)ksi(MPa)

≥30(207)ksi(MPa)

≥15

N02201 OD≤127MM

Annealed

≥50000(380)psi(MPa)

≥12000(80)psi(MPa)

≥35

N02201 OD>127MM

Annealed

≥50000(345)psi(MPa)

≥10000(70)psi(MPa)

≥40

N02201

Stress-relieved

≥60000(415)psi(MPa)

≥30000(205)psi(MPa)

≥15

the ASTM B161 ASTMB163 Nickel alloy seamless tube and pipe tolerance

Nickel 200 Alloy (UNS N02200)/2.4066 Applications

Nickel Alloy 200 Pipe is widely used in various industries such as

Chemical processing, Aerospace, Marine, and Oil and Gas.

Heat exchangers, Reactors, Pipelines, and other high-temperature applications.

Electrical components and is ideal for use in corrosive environments.

One of our Services--Testing

  • EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2 Material Test Certificates (MTC)
  • Raw Materials Certificate
  • 100% Radiography Test Report

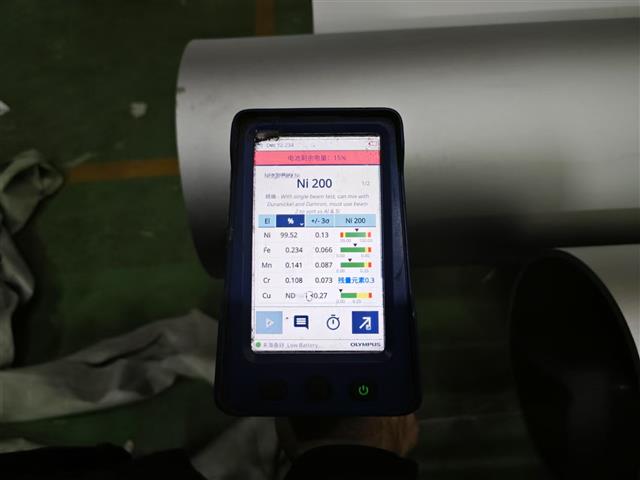

  • 100% PMI
  • Heat Treatment Charts
  • Third Party Inspection Report
  • Surface roughness and size measurement
  • Manufacturer Test Certificate( Impact Testing, Flatten, Spin,Curve, Hardness, Intergranular ,Point corrosions, Grain size, ET,UT, HT...)
  • Laboratory Test Certificate from Govt. Approved Lab
  • ......

One of our Services--End of Pipe and Tube

  • BE : Beveled end
  • BBE : Bevel both ends
  • BLE : Bevel large end
  • BSE : Bevel small end
  • TOE / POE = Treaded One End / Plain One End
  • TOE / BOE = Treaded One End / Beveled One End
  • POE / BOE = Plain One End / Beveled One End
  • TBE = Treaded Both Ends
  • PBE = Plain Both Ends

One of our Services--Packing

  • Ply Wooden Boxes
  • PE Fabric Bundles
  • Standard seaworthy export packing
  • Plastic Bags, or as required

One of our Services--vMarking

  • Supplier / Manufacturer Name or Custom Logo - on request
  • Specification
  • Material Grade
  • Nominal Size
  • Schedule or Wall Thickness
  • Method of Manufacturing (Seamless or Welded)
  • Heat Number

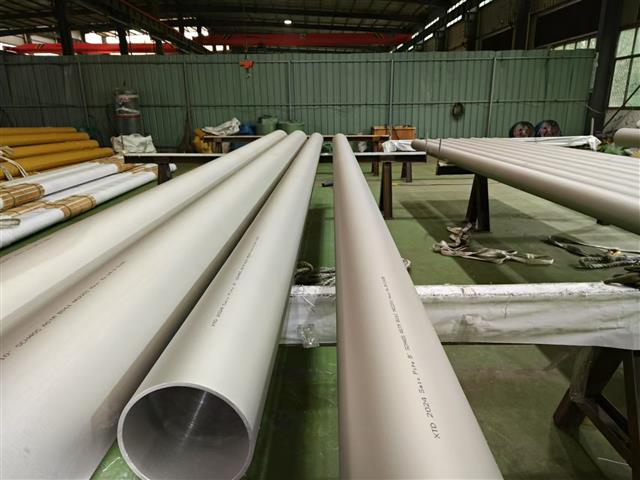

Marked Pipe Sample: XTD ASTM B161  UNS N02200  SEAMLESS 42.2x 3.56*6000MM HEAT NO. 2023121205A15

Nickel 200 Alloy (UNS N02200)/2.4066 Material Summary

Nickel Alloy 200 pipe prevents attacks from media and alkalis as well as sulfuric, hydrochloric, and hydrofluoric acids. While the majority of this alloy is composed of nickel, trace amounts of other elements include a maximum of 0.40% Fe, 0.35% Mn, 0.35% Si, 0.25% Cu, and 0.15% C. As a result, Nickel Alloy 200 features excellent magnetic and magnetostrictive properties, high thermal and electrical conductivity, low gas content, and low vapor pressure.

Conventional fabrication methods can be used on Nickel Alloy 200 pipe. It can be welded, brazed, or soldered using common methods. Despite its high strength, Nickel Alloy 200 is typically hot rolled, cold formed, and successfully machined as long as industry accepted procedures are used. Nickel Alloy 200, Commercially Pure Nickel, and Low Alloy Nickel offer a purity level that many industries require in their products. For structural applications, Nickel 200 alloy ensures long term integrity thanks to its resistance to a variety of corrosives. In food handling, it provides excellent abrasion and corrosion resistance, helping to maintain sterile and hygienic processing. Nickel Alloy 200's purity features protection from caustic alkalis and other reducing chemicals.
The material complies with various international standards and exhibits good physical properties such as high strength, good ductility, and toughness. It also has a low coefficient of thermal expansion, making it ideal for use in high-temperature applications. Nickel Alloy 200 Pipe has several advantages over other materials such as its excellent corrosion resistance, cost-effectiveness, and ease of fabrication.

Standard download
