| Ni | Cr | Mo | Fe | C | Si | Co | Mn | P | S | Cb(Nb+Ta) | Al |
| Bal | 22.00-24.00 | 15.00-17.00 |
≤3.00 |
≤0.010 |
≤0.08 |
≤2.00 |
≤0.50 |
≤0.025 |
≤0.010 |
1.30-1.90 |
≤0.50 |
Hastelloy C2000/Alloy C-2000/UNS N06200/2.4675 Chemical Composition
Hastelloy C2000/Alloy C-2000/UNS N06200/2.4675 Mechanical Properties
|
Tensile strength,Ksi(Mpa) |
Yield Strength(Mpa)
|
Elongation %
|
|
≥100(690) |
≥45(310) |
≥45 |
Hastelloy C2000/Alloy C-2000/UNS N06200/2.4675 Applications
One of our Services--Testing
- EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2 Material Test Certificates (MTC)
- Raw Materials Certificate
- 100% Radiography Test Report
- 100% PMI
- Heat Treatment Charts
- Third Party Inspection Report
- Surface roughness and size measurement
- Manufacturer Test Certificate( Impact Testing, Flatten, Spin,Curve, Hardness, Intergranular ,Point corrosions, Grain size, ET,UT, HT...)
- Laboratory Test Certificate from Govt. Approved Lab
- ........
One of our Services--End of Pipe and Tube
- BE : Beveled end
- BBE : Bevel both ends
- BLE : Bevel large end
- BSE : Bevel small end
- TOE / POE = Treaded One End / Plain One End
- TOE / BOE = Treaded One End / Beveled One End
- POE / BOE = Plain One End / Beveled One End
- TBE = Treaded Both Ends
- PBE = Plain Both Ends

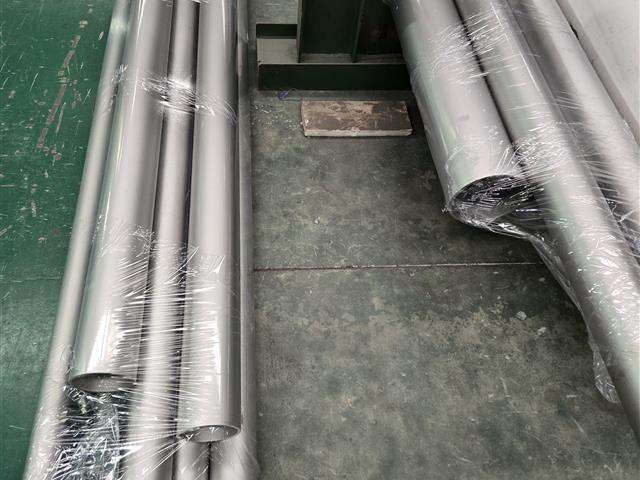

One of our Services--Packing
- Ply Wooden Boxes
- PE Fabric Bundles
- Standard seaworthy export packing
- Plastic Bags, or as required
One of our Services--Marking
- Supplier / Manufacturer Name or Custom Logo - on request
- Specification
- Material Grade
- Nominal Size
- Schedule or Wall Thickness
- Method of Manufacturing (Seamless or Welded)
- Heat Number

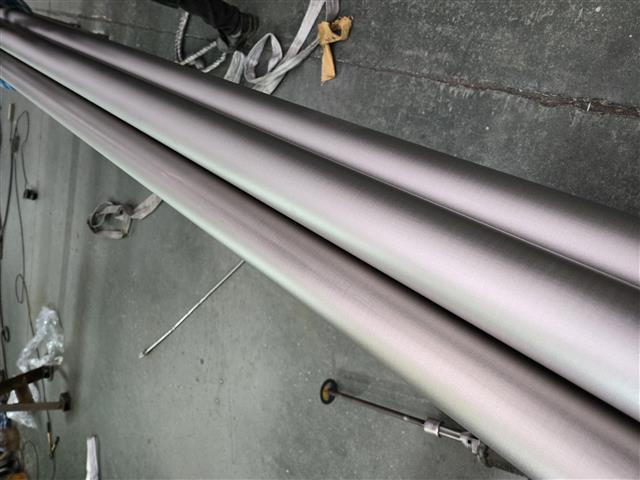

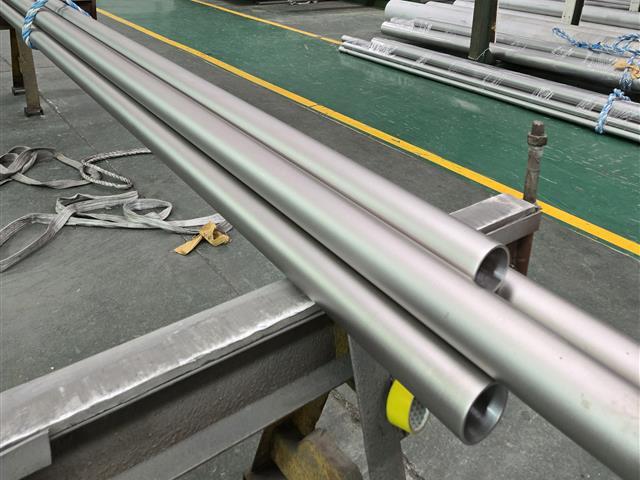

Marked Pipe Sample: XTD ASTM B622 UNS N06200 SEAMLESS 42.2x 3.56*6000MM HEAT NO. 2023121205A15
Hastelloy C2000/Alloy C-2000/UNS N06200/2.4675 Material Summary
N06200 nickel is a nickel alloy formulated for primary forming into wrought products. Cited properties are appropriate for the annealed condition. 2.4675 is the EN numeric designation for this material. NiCr23Mo16Cu is the EN chemical designation. And N06200 is the UNS number.
HASTELLOY® C-2000® alloy (UNS N06200) is unique among the versatile nickel-chromium-molybdenum materials in having a deliberate copper addition. This provides greatly enhanced resistance to sulfuric acid. It also has a high chromium content, to maximize its resistance to oxidizing chemicals and process streams contaminated with ferric ions and dissolved oxygen.
Like other nickel alloys, it is ductile, easy to form and weld, and possesses exceptional resistance to stress corrosion cracking in chloride-bearing solutions (a form of degradation to which the austenitic stainless steels are prone). It is able to withstand a wide range of oxidizing and non-oxidizing chemicals, and exhibits outstanding resistance to pitting and crevice attack in the presence of chlorides and other halides.
· UNS N06200 (Hastelloy C2000/2.4675) alloy broadens the range of the nickel-chromium-molybdenum alloy family with the addition of copper which allows for resistance to an extensive range of corrosive chemicals including sulfuric, hydrochloric, and hydrofluoric acids over large temperature ranges. Molybdenum and copper provide excellent corrosion resistance to reducing media while the chromium content gives good oxidizing resistance.
· UNS N06200 (Hastelloy C2000/2.4675) is unique within the spectrum of Nickel-Chromium-Molybdenum alloys because it is resistant to a wide range of corrosive chemicals which includes most types of acids. This is due to the Copper content in the strip itself. Not only can it handle these corrosive materials, it can do so at extreme temperature ranges. Meanwhile, the presence of Molybdenum still gives excellent resistance to corrosion, and the Chromium provides resistance to oxidation. Combining all of these characteristics together makes for a strip alloy that has the same versatility as your standard Nickel-Chromium-Molybdenum alloys with the added benefits of the presence of Copper.
· Besides being resistant to acids, UNS N06200 (HASTELLOY C2000/2.4675) also stands up to process streams that contain traces of ferric ions and dissolved oxygen. Furthermore, it is exceptionally resistant to chloride solutions that can lead to stress corrosion cracking, something that is common among stainless steels. It can also withstand pitting and crevice attack when it comes in contact with chlorides. Perhaps its greatest strength is that it is still as easy to weld and to form as other Nickel alloys on the market.
· The extremes that UNS N06200 (HASTELLOY C2000/2.4675) can handle make it an invaluable tool in the chemical processing industry. When engineers are creating equipment that can withstand the rigorous demands that chemical processing can put on a machine, it is important that all of the individual pieces within the machine can hold up over time. Otherwise, too much time will be spent on maintenance and not enough time spent on the task at hand. Oftentimes, Chemical processing must deal with highly corrosive materials which have to operate at extreme temperature ranges. Therefore, it needs a strip that can handle both of those qualifications. UNS N06200 (HASTELLOY C2000/2.4675) does just that.
· There are 12 corrosion resistant alloys within the spectrum of HASTELLOY. While they all are mostly made up of Nickel, Chromium, and Molybdenum, the 12 alloys all have different variants with different elements infused inside. The variation within UNS N06200 (HASTELLOY C2000/2.4675) is the small amount of Copper present. Though it only contains roughly 1.6% percent Copper, it is just enough to add the benefits, while still maintaining the properties that Hastelloy is known for.
