| Ni | Cr | C | Mn | Si | Cu | Mo | N | P | S | Fe |
| 30.00-32.00 | 26.00-28.00 |
≤0.015 |
≤2.00 |
≤0.030 |
1.00-1.40 | 6.00-7.00 | 0.15-0.25 |
≤0.020 |
≤0.010 |
Bal |
PREN = (Cr% + 3.3Mo% + 16N%) ≥ 48
UNS N08031/1.4562/Alloy31/X1NiCrMoCu32-28-7 Chemical Composition
UNS N08031/1.4562/Alloy31/X1NiCrMoCu32-28-7 Mechanical Properties
|
Hardness |
≤220HB |
|
Yield strength Rp ≥ N/mm² |
≥276 |
|
Tensile strength Rm N/mm² |
≥650 |
|
Elongation A5 ≥ % |
≥40 |
the ASTM B622 Nickel alloy seamless tube and pipe tolerance
UNS N08031/1.4562/Alloy31/X1NiCrMoCu32-28-7 Applications
• Flue gas cleaning systems: inland and marine scrubbers
• Pulp and paper industry: bleaching equipment
• Oil and Gas applications
• Chemical industries
Standard
| Seamless Tube | ASTM B622 |
| Welded Tube | ASTM B619 B626 |
One of our Services--Testing
- EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2 Material Test Certificates (MTC)
- Raw Materials Certificate
- 100% Radiography Test Report
- 100% PMI
- Heat Treatment Charts
- Third Party Inspection Report
- Surface roughness and size measurement
- Manufacturer Test Certificate( Impact Testing, Flatten, Spin,Curve, Hardness, Intergranular ,Point corrosions, Grain size, ET,UT, HT...)
- Laboratory Test Certificate from Govt. Approved Lab
- ........

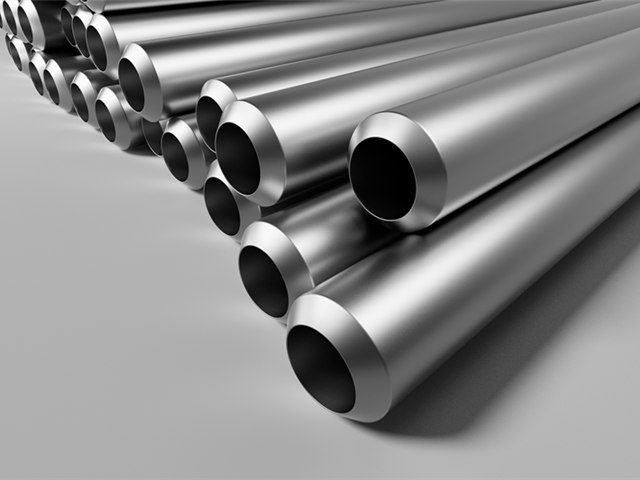

One of our Services--End of Pipe and Tube
- BE : Beveled end
- PE: Plain end
- BBE : Bevel both ends
- BLE : Bevel large end
- BSE : Bevel small end
- TOE / POE = Treaded One End / Plain One End
- TOE / BOE = Treaded One End / Beveled One End
- POE / BOE = Plain One End / Beveled One End
- TBE = Treaded Both Ends
- PBE = Plain Both Ends

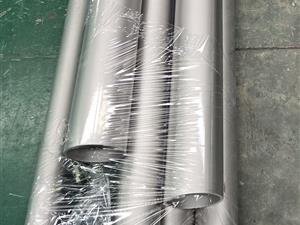

One of our Services--Packing
- Ply Wooden Boxes
- PE Fabric Bundles
- Standard seaworthy export packing
- Plastic Bags, or as required
One of our Services--Marking
-
Supplier / Manufacturer Name or Custom Logo - on request
-
Specification
-
Material Grade
-
Nominal Size
-
Schedule or Wall Thickness
-
Method of Manufacturing (Seamless or Welded)
-
Heat Number
Marked Pipe Sample: XTD ASTMB622 UNS N08031 SEAMLESS 42.2x 3.56*6000MM HEAT NO. 2023121205A15
UNS N08031/1.4562/Alloy31/X1NiCrMoCu32-28-7 Material Summary
Alloy 31 is a nickel, chromium and molybdenum stainless steel with nitrogen and copper additions. It combines moderate tensile strength and high ductility with excellent corrosion resistance in sulfuric acid, reducing and oxidizing media and has strong resistance to corrosion and erosion corrosion in phosphoric environment.
Typically the alloy has PREN of ≥ 48, which ensure that the resistance to pitting corrosion is high.
Alloy 31 has excellent resistance to localized corrosion in halide media, both pitting and crevice corrosion. It also provides:
•
Outstanding resistance to sulfuric acid.
• Excellent resistance to phosphoric acid.
• Good resistance to nitric and nitric/ hydrofluoric acid mixtures.
• Excellent resistance to chlorine dioxide media in the pulp and paper
industry.
• Excellent resistance to both oxidizing and reducing media.
• Good resistance to stress corrosion cracking.
• Excellent resistance to general and localized corrosion in Chloridoxid bleaching plants in paper production
• Certification to ISO 15156/MR 0175 to level VI for sour gas applications in the oil and gas industry
• Excellent corrosion resistance in alkaline and acid halide media
• Approval for pressure vessels with operating temperatures from -196 to 550C
• Good processability and weldability
Standard download
ASTM B622 Standard Specification for Seamless Nickel and Nickel Cobalt Alloy Pipe and Tube
