Grade |
Ni |
Cu |
Fe |
Mn |
C |
Si |
S |
|
UNS N02200 |
≥99.00 |
≤0.25 |
≤0.40 |
≤0.35 |
≤0.015 |
≤0.35 |
≤0.01 |
|
UNS N02201 |
≥99.00 |
≤0.25 |
≤0.40 |
≤0.35 |
≤0.02 |
≤0.35 |
≤0.01 |
Nickel 200 Alloy (UNS N02200)/2.4066 Chemical Composition
Nickel 200 Alloy (UNS N02200)/2.4066 Mechanical Properties
|
Grade |
Condition |
Tensile Strength |
Yield Strength |
Elongation(%) |
|
N02201 |
Annealed |
≥50(345)ksi(MPa) |
≥12(83)ksi(MPa) |
≥40 |
|
N02201 |
Stress-relieved |
≥60(414)ksi(MPa) |
≥30(207)ksi(MPa) |
≥15 |
|
N02201 OD≤127MM |
Annealed |
≥50000(380)psi(MPa) |
≥12000(80)psi(MPa) |
≥35 |
|
N02201 OD>127MM |
Annealed |
≥50000(345)psi(MPa) |
≥10000(70)psi(MPa) |
≥40 |
|
N02201 |
Stress-relieved |
≥60000(415)psi(MPa) |
≥30000(205)psi(MPa) |
≥15 |
the ASTM B161 ASTMB163 Nickel alloy seamless tube and pipe tolerance
Nickel 200 Alloy (UNS N02200)/2.4066 Applications
Nickel Alloy 200 Pipe is widely used in various industries such as
Chemical processing, Aerospace, Marine, and Oil and Gas.
Heat exchangers, Reactors, Pipelines, and other high-temperature applications.
Electrical components and is ideal for use in corrosive environments.
One of our Services--Testing
- EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2 Material Test Certificates (MTC)
- Raw Materials Certificate
- 100% Radiography Test Report

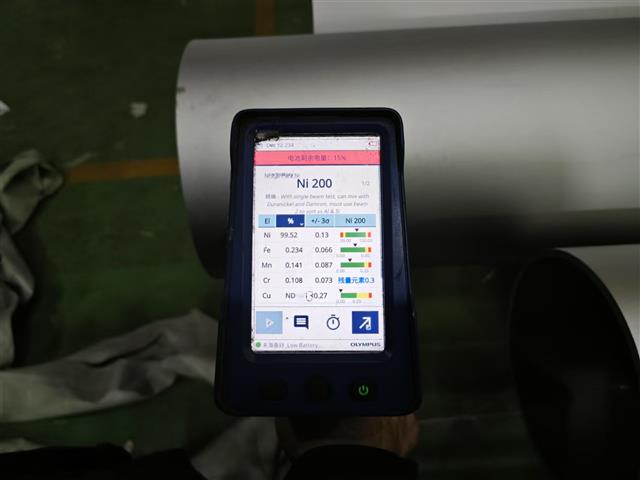

- 100% PMI
- Heat Treatment Charts
- Third Party Inspection Report
- Surface roughness and size measurement
- Manufacturer Test Certificate( Impact Testing, Flatten, Spin,Curve, Hardness, Intergranular ,Point corrosions, Grain size, ET,UT, HT...)
- Laboratory Test Certificate from Govt. Approved Lab
- ......
One of our Services--End of Pipe and Tube
- BE : Beveled end
- BBE : Bevel both ends
- BLE : Bevel large end
- BSE : Bevel small end
- TOE / POE = Treaded One End / Plain One End
- TOE / BOE = Treaded One End / Beveled One End
- POE / BOE = Plain One End / Beveled One End
- TBE = Treaded Both Ends
- PBE = Plain Both Ends
One of our Services--Packing
- Ply Wooden Boxes
- PE Fabric Bundles
- Standard seaworthy export packing
- Plastic Bags, or as required

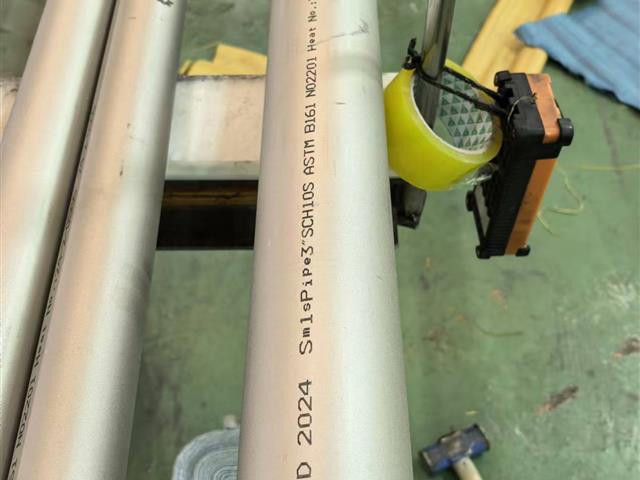

One of our Services--vMarking
- Supplier / Manufacturer Name or Custom Logo - on request
- Specification
- Material Grade
- Nominal Size
- Schedule or Wall Thickness
- Method of Manufacturing (Seamless or Welded)
- Heat Number

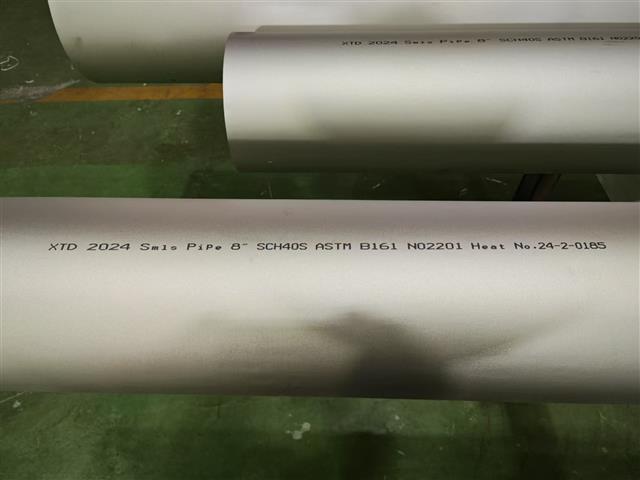

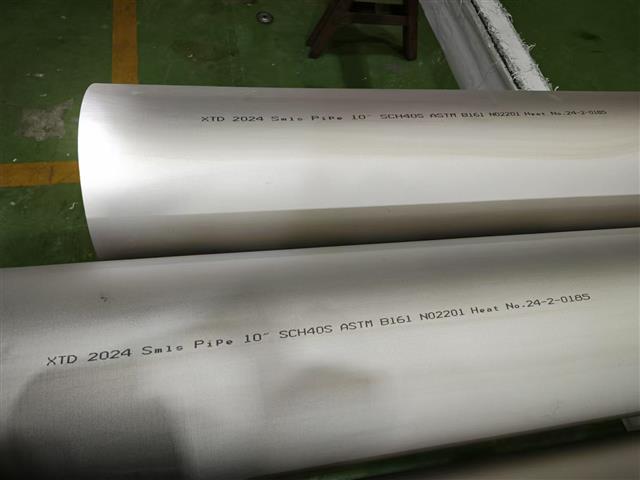

Marked Pipe Sample: XTD ASTM B161 UNS N02200 SEAMLESS 42.2x 3.56*6000MM HEAT NO. 2023121205A15
Nickel 200 Alloy (UNS N02200)/2.4066 Material Summary
Nickel Alloy 200 pipe prevents attacks from
media and alkalis as well as sulfuric, hydrochloric, and hydrofluoric acids.
While the majority of this alloy is composed of nickel, trace amounts of other
elements include a maximum of 0.40% Fe, 0.35% Mn, 0.35% Si, 0.25% Cu, and 0.15%
C. As a result, Nickel Alloy 200 features excellent magnetic and
magnetostrictive properties, high thermal and electrical conductivity, low gas
content, and low vapor pressure.
Conventional fabrication methods can be used on Nickel Alloy 200 pipe. It can
be welded, brazed, or soldered using common methods. Despite its high strength,
Nickel Alloy 200 is typically hot rolled, cold formed, and successfully
machined as long as industry accepted procedures are used. Nickel Alloy 200, Commercially
Pure Nickel, and Low Alloy Nickel offer a purity level that many industries
require in their products. For structural applications, Nickel 200 alloy
ensures long term integrity thanks to its resistance to a variety of
corrosives. In food handling, it provides excellent abrasion and corrosion
resistance, helping to maintain sterile and hygienic processing. Nickel Alloy
200's purity features protection from caustic alkalis and other reducing
chemicals.
The material complies with various international standards and exhibits good physical properties such as high strength, good ductility, and toughness. It also has a low coefficient of thermal expansion, making it ideal for use in high-temperature applications. Nickel Alloy 200 Pipe has several advantages over other materials such as its excellent corrosion resistance, cost-effectiveness, and ease of fabrication.
